Master BV 400 Indirect Oil Fired Space Heater
110kW

Master BV 400 Indirect Oil Fired Space Heater

Efficient, ductable heater for cost-effective climate control in large spaces

The Master BV 400 is an efficient indirect space heater with a 110kW heat output and 6200m³/h airflow. It is ideal for heating in a versatile range of large spaces, such as warehouses, factories, construction sites, marquees, tents, outdoor markets, and more. The BV 400 provides warm, clean air for an area, keeping staff, customers, and guests warm and comfortable during cold weather. This indirect oil fired heater also has a summer/winter switch and a socket for a remote room thermostat.

This space heater has a 2 stage Master burner which allows you to choose between 80kW and 110kW heat output. You can adjust the heater to suit spaces of various sizes and different environments. You can also set the heater to its lower setting to consume less fuel over an extended operating period. The Master BV 400 comes with 1 air output valve as standard, and there is a 2 output adapter available so that you can connect multiple lengths of the ducting to heat two separate locations at the same time.

The Master BV 400 heater has been built and designed to ensure quality, efficiency, and long service life. The outer shell and combustion chamber are tough and durable stainless steel, mounted on a robust rotomoulded fuel tank. These components give the heater the capability to cope with the heavy-demands of regular use in challenging environments and conditions. The burner is fitted within a sturdy box, and the unit has an IP44 rating for good resistance to water and dirt ingress. The tank's base is fitted directly into a trolley that has pneumatic wheels to allow for easy and convenient mobility between sites.

Master BV 400 Heater Specifications:
Heat Output: 110kW / 80kW
Airflow: 6,200 m³/h
Total Air Pressure: 500 Pa
Fan: Plug Fan
Ductability: 50m
Motor Power Fan: 750/1400 W/rpm
Ducting: 1 tube Ø 41cm / 2 tubes Ø 31cm
Maximum Air Temperature: 95°C
Summer Ventilation: Yes
Remote Thermostat: Analogue or Digital
Flue Tube: 150mm
Electronic Box Protection: IP43
Fuel Tank Capacity: 150L
Fuel Consumption: 10.2 l/h high mode / 7.7 l/h low mode
Rated Current: 6.8A
Power Supply: 220-240/1ph/50 V/Hz
Weight: 230 kg
Product Size (l x w x h): 2086 x 717 x 1233 mm

110kW Max Heating Capacity: The Master BV 400 Indirect Oil Fired Space Heater can deliver 110kW of heat to warm up large areas quickly and efficiently.

Powerful Plug Fan: This space heater can push clean air over long distances, with an airflow rate of 6200m³/h and an air pressure of 500 Pa.

Supplies Clean Warm Air: The Master BV 400 provides a large volume of 100% clean, dry and fume free warm air. It is safe and suitable for safe for enclosed, poorly ventilated areas, like marquees, tents, halls, and more.

Two Stage Master Burner: Allows you to choose between 80kW and 110kW heat output, for the best possible efficiency, performance, and safety on different sites.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

Summer/Winter Switch: This allows the fan to be used without the heating element, to provide ventilation during warmer months.

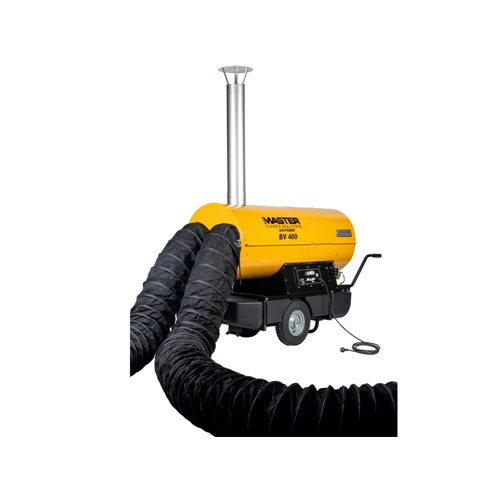

Ducting Connection: Lengths of ducting can be attached to this heater to direct the clean warm air into the space that you need to heat. Optional ducting adaptors are available with 1, 2 or 4 outlets, allowing separate lengths of ducting to be used to direct air to different areas. Ducting makes it possible to heat a range of large and enclosed areas safely and evenly, and heat different rooms at the same time.

Thermostat Connectivity: An optional thermostat can be connected to the heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature, saving on fuel consumption.

Tough & Robust Heater: The Master BV 400 is built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more. It has a stainless steel combustion chamber, a steel frame with metric bolts, and a heat exchanger made from stainless steel pipes.

Portable Design: The heater is mounted on a wheeled trolley so you can move it around easily. It also has forklift slots and a hook for crane hanging, allowing you to lift the heater on and off transport.
