Calorex DH 600BY Industrial Dehumidifier
600 Litres

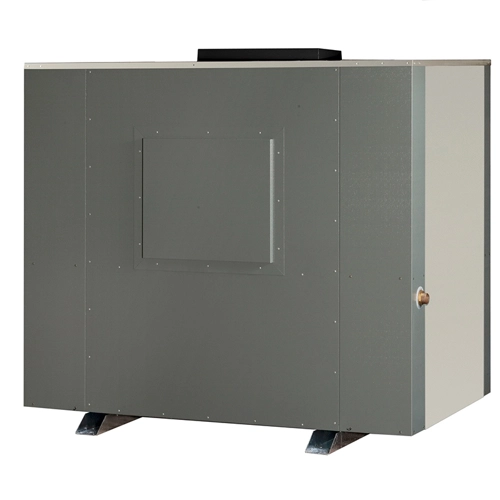

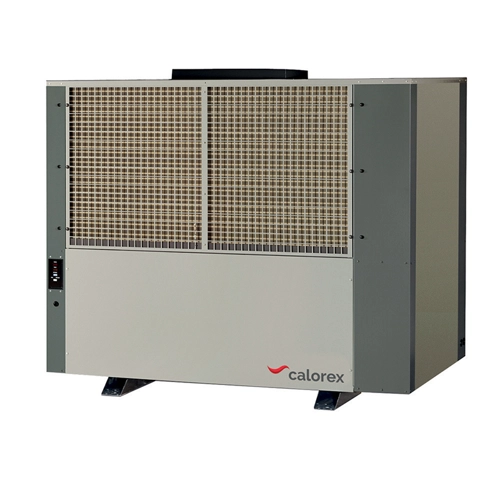

Calorex DH 600BY Dehumidifier

Floor-standing, high-capacity industrial dehumidifier

The Calorex DH 600BY dehumidifier can remove up to 600-litres of excess moisture from the air each day. It is a floor-standing unit that is perfect for installation in warehouses, factories, industrial units, electrical sub-stations, food and drink production plants, museums, storage facilities, farms and agricultural drying areas, plus more. It is designed for controlling humidity levels in these spaces to prevent moisture damage to stored items, equipment and machinery within the space, prevent damp, mould, rot and other building structure problems, and to assist in drying out during various food production processes. The DH 600BY operates on a 400v 3 phase power supply to run continuously and consistently.

This industrial dehumidifier is entirely self-contained and features fully automatic operation. It has an operating temperature range of -15°C - +35°C, with a reverse cycle defrost function and an integrated humidistat. As the DH 600BY can run at these extremely low temperatures, it is versatile and practical to use all year round. This industrial dehumidifier also has a 1½ inch BSPM condensate outlet that can be connected to a hose for continuous drainage. You can always leave the unit running unattended, and no water tank needs emptying.

The Calorex DH 600BY is a durable and robust dehumidifier, designed to withstand the demands of busy industrial environments. It has a plastisol coated galvanised steel cabinet to protect inner components and resist corrosion, and a polyester-coated evaporator and condenser. It features an ergonomic design for convenient installation, and there is a range of optional accessories available, including an air filter kit, a condensate pump, external condenser unit and compressor soft start. An air inlet duct kit is available, which allows the dehumidifier to be used with a ducting system, to draw air in over large areas.

Please Note: This high capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.

Calorex DH 600BY Industrial Dehumidifier Specifications
Capacity (30°C/60% RH): 600L/24h
Air flow: 9000 m3h
Operating temperature range: -15°C - +35°C
Heat recovered to air @ 30°C/60% RH: 29.7kW
External static pressure: 90Pa
Sound pressure level @ 3m: 58dB(A)
Refrigerant: R407c
Power supply: 400v/3ph/50Hz
Nominal power consumption: 10kW
FLA: 26A
Maximum supply fuse: 35A
LRA (compressor start): 135A
LRA (compressor soft-start): 55A
Product size (w x d x h): 1730 x 1250 x 1600 mm
Weight: 497kg
Condensate drain size (flexible plastic hose): 1½ Inch BSPM

600L/24Hr Water Removal: This high-capacity dehumidifier offers efficient performance, with cooling and compressor operating times based on an internal microprocessor calculation to optimise performance. It is suitable for managing humidity in large industrial spaces, including warehouses, factories, industrial units, electrical sub-stations, food and drink production plants, museums, storage facilities and more.

Self Contained / Fully Automatic: The Calorex DH 600BY can run continuously and unattended so that it can extract the maximum amount of excess moisture from a room.

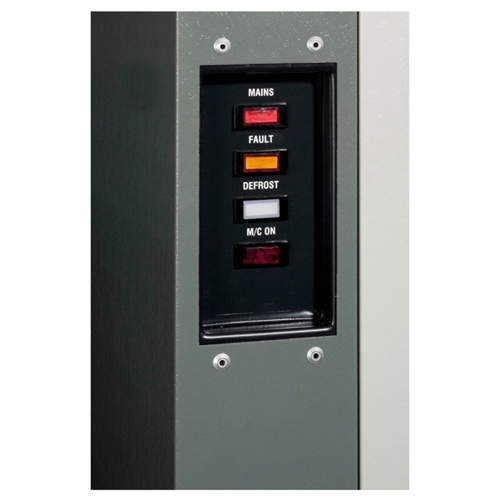

Integral Humidistat: Featuring user-friendly controls, the humidistat allows you to set the desired humidity level. When the relative humidity in the space varies from the set level, the Calorex DH 600BY will automatically turn on or shut down.

Plastisol Coated Galvanised Steel Cabinet: The Calorex DH 600BY has a tough and robust corrosion-resistant outer casing that provides durability.

Polyester Coated Evaporator & Condenser: The high-quality components ensure effective and reliable moisture extraction plus longevity and reliability.

1½ Inch BSPM Condensate Drain: Allows for a hose to be connected and fed out through a wall for permanent drainage, so there is no tank to empty.

Extremely Low Temperature Operation & Reverse Cycle Defrost: The Calorex DH 600BY dehumidifier can operate effectively at temperatures from -15°C - +35°C, making it incredibly versatile. The reverse cycle defrost automatically melts any ice build-up on the refrigerated coils so that the unit can continue to run seamlessly, and water from the melted ice is drained away with the condensate.

F-Gas Compliant Refrigerant: The Calorex DH 600BY uses the R407a refrigerant, which is efficient, more economically friendly, and meets 2020 EU regulations for safety.

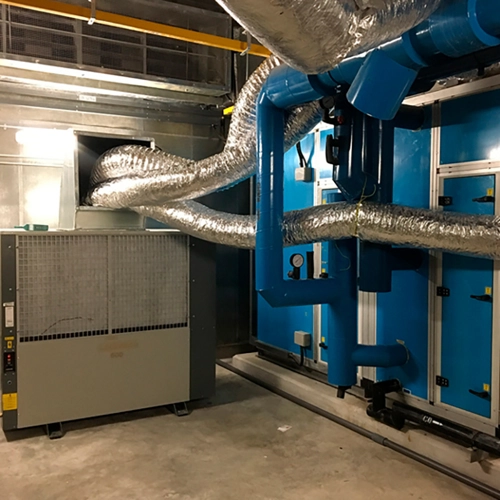

Optional Accessories Available: A range of optional accessories are available for the DH 600BY dehumidifier, including an air filter kit, a condensate pump, external condenser unit and compressor soft start. An air inlet duct kit is available, which allows the dehumidifier to be used with a ducting system, to draw air in over large areas in spaces such as factories, warehouses and food production facilities.

Please Note: The Calorex DH 600BY high-capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.
