Calorex DH 110 Dehumidifier
108 Litres

Calorex DH 110 Dehumidifier

108L capacity, floor-standing dehumidifier

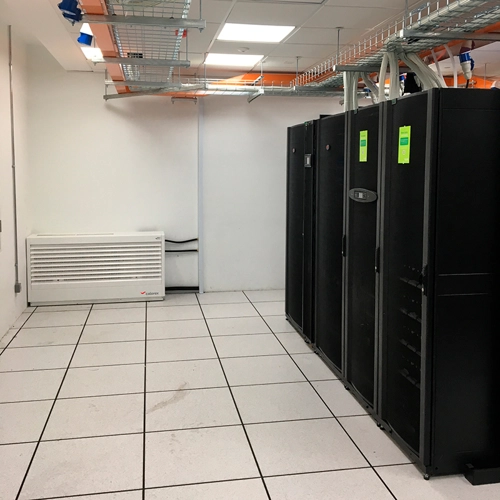

The Calorex DH 110 is a high-capacity dehumidifier that can remove up to 108-litres of water within 24 hours to effectively remove excess water in areas that contain a lot of moisture. It is ideal for data centres, offices, museums, galleries and more. The Calorex DH 110 is a self-contained, fully automatic unit with an integrated humidistat and a 15mm condensate outlet for permanent drainage. It is also a robust and durable unit, with a polyester-coated evaporator and condenser, and a stove-enamelled aluminium cabinet. The dehumidifier can withstand regular use in demanding, commercial environments, and it is easy to clean and maintain.

There are 2 models of the Calorex DH 110 available. The DH 110AX is a 230v refrigerant dehumidifier, while the DH110BX is a 3 phase unit. The 110AX is powered by a standard electricity supply, like what you have at home, and it is great for commercial areas. The 110BX is a 400v requires a 3 phase supply for a consistent feed of power - this is more suited to industrial locations with 400v power supply.

This commercial dehumidifier has a low temperature operating range of 5-35°C, and a hot gas defrost function. It works well all year round - effective in unheated areas and during colder weather. The Calorex DH 110 also recovers heat to the air when running, helping to raise the ambient temperature for the comfort of occupants and guests and improving dehumidification efficiency while reducing other heating costs.

DH 110AX (230v) Specs
Operating temperature range: 5-35°C
Dehumidification @ 30°C/60% RH: 108L/24h
Heat recovered to air @ 30°C/60% RH: 5.2kW
Air flow: 1180m3/h
External static pressure: 0Pa
Sound pressure level @ 3m: 53dB
Refrigerant: R407c
Power supply (V/ph/Hz): 230/1ph/50
Nominal power consumption: 2.1kW
FLA: 12.0A
Maximum supply fuse: 20A/
LRA (compressor start): 66A
Heater type: Optional LPHW
Heat output @ 80°C flow: 8.9kW
Flow rate: 9.6l/min
Product size (w x d x h): 1520 x 385 x 796mm
Weight: 144kg
Condensate drain size (brass compression): 15mm

DH 110BX (3 Phase) Specs
Operating temperature range: 5-35°C
Dehumidification @ 30°C/60% RH: 108l/24h
Heat recovered to air @ 30°C/60% RH: 5.2kW
Air flow: 1180m3/h
External static pressure: 0Pa
Sound pressure level @ 3m: 53dB
Refrigerant: R407c
Power supply (V/ph/Hz): 400/3ph/50
Nominal power consumption: 2kW
FLA: 5.5kW
Maximum supply fuse: 10A
LRA (compressor start): 30A
Heater type: Optional LPHW
Heat output @ 80°C flow: 8.9kW
Flow rate: 9.6l/min
Product size (w x d x h): 1520 x 385 x 796mm
Weight: 144kg
Condensate drain size (brass compression): 15mm

108L/24Hr Water Removal: This high-capacity dehumidifier offers efficient performance, with cooling and compressor operating times based on an internal microprocessor calculation to optimise performance.

Power Supply Options: Available in 230v and 3 Phase models, the Calorex DH 110 is ideal for commercial applications.

Integral Humidistat: Featuring user-friendly remote controls, the humidistat allows you to set the desired humidity level. When the relative humidity in the space varies from the set level, the machine will automatically turn on or shut down.

Drainage Hose Connection: Allows a hose to be connected so that condensate can be drained out of the space through an external wall, meaning there is no tank to empty.

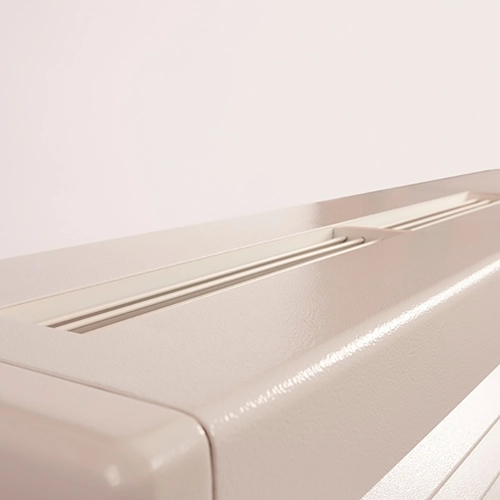

Robust Build: This dehumidifier is built to a high standard, with high quality components and a long-lasting stove enamelled aluminium cabinet, designed to withstand tough environments. Suitable for data centres, warehouses, storage facilities, museums and galleries, offices, archives, sports halls, gyms and more.

Self Contained / Fully Automatic: The Calorex DH 110 can run continuously and unattended so that it can extract the maximum amount of excess moisture from a room.

Hot Gas Defrost: The Calorex DH 110 has an automatic defrost function built into the system. If the evaporator reaches near freezing temperatures, the defrost function flushes the evaporator with hot gas to melt any formed ice. Once a preset temperature is reached, the dehumidifier resumes regular operation.

Low Noise: The quiet centrifugal fans with two speeds operate at just 53dB, which is the same volume as a normal conversation - perfect for public spaces.

Optional Accessories Available: A range of optional accessories are available for the Calorex DH110 dehumidifier, including a remote humidistat, which can be wired to the dehumidifier with up to 100m of cable (1mm SQ cable), allowing control of the set humidity level away from the unit. We also have a low pressure hot water (LPHW) option. The LPHW option is an 8.9kW heating coil which can be added inside the unit. It works the same as a radiator in your house - so it needs to be plumbed into a boiler system. It provides a source of heat which warms the air, allowing it to absorb more moisture that the dehumidifier can extract, and it provides a heat source for occupants working within the space.
